Custom Aluminum Flashing in Vancouver, BC
Light, rust-free, bent to your drawings in Delta.
Aluminum flashing is the light option, and it won't rust. Liva Forming bends custom aluminum flashing to your drawings in our Delta, BC shop for siding, roofing and general contractors in Vancouver, Surrey and across the Lower Mainland. Send the profile and you usually have a price the same day.
Aluminum flashing profiles
The shapes are the same ones we bend in steel. Drip edge, J-channel and starter strip. Corners, head and sill flashing, fascia caps. Custom profiles straight from your sketch.
Browse the standard shapes in the product catalog, then tell us which ones you need in aluminum and how many feet of each.

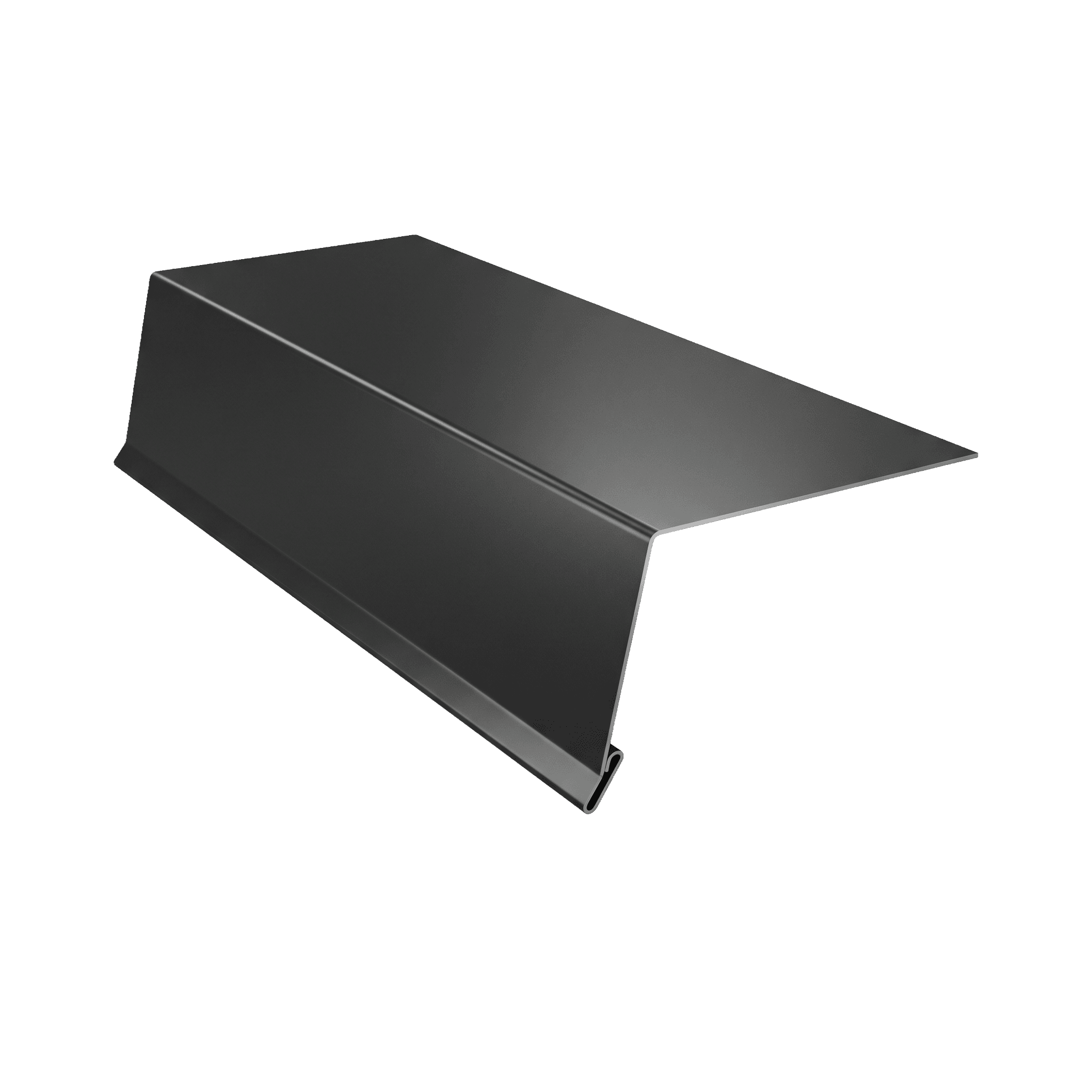

Drip edge

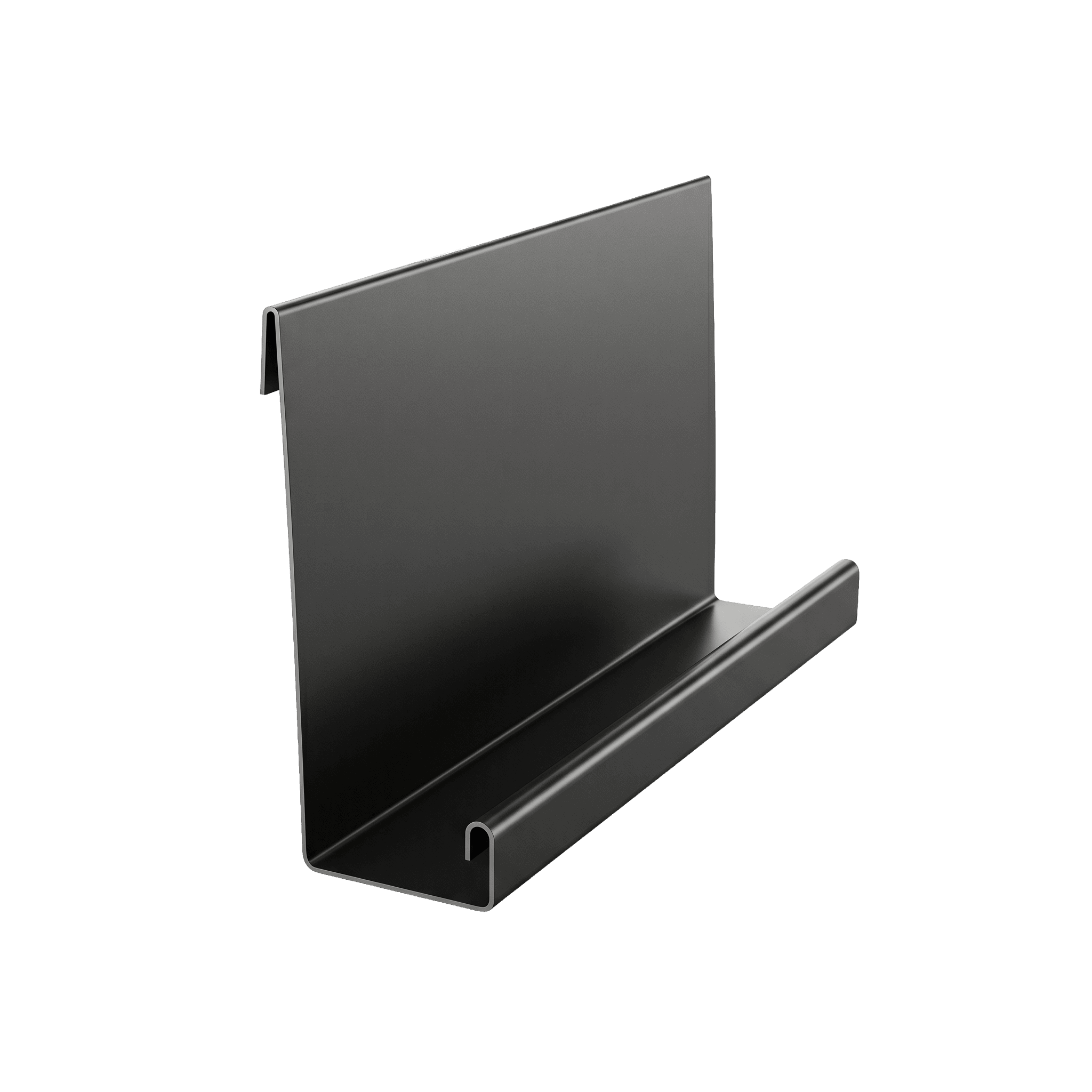

J-channel

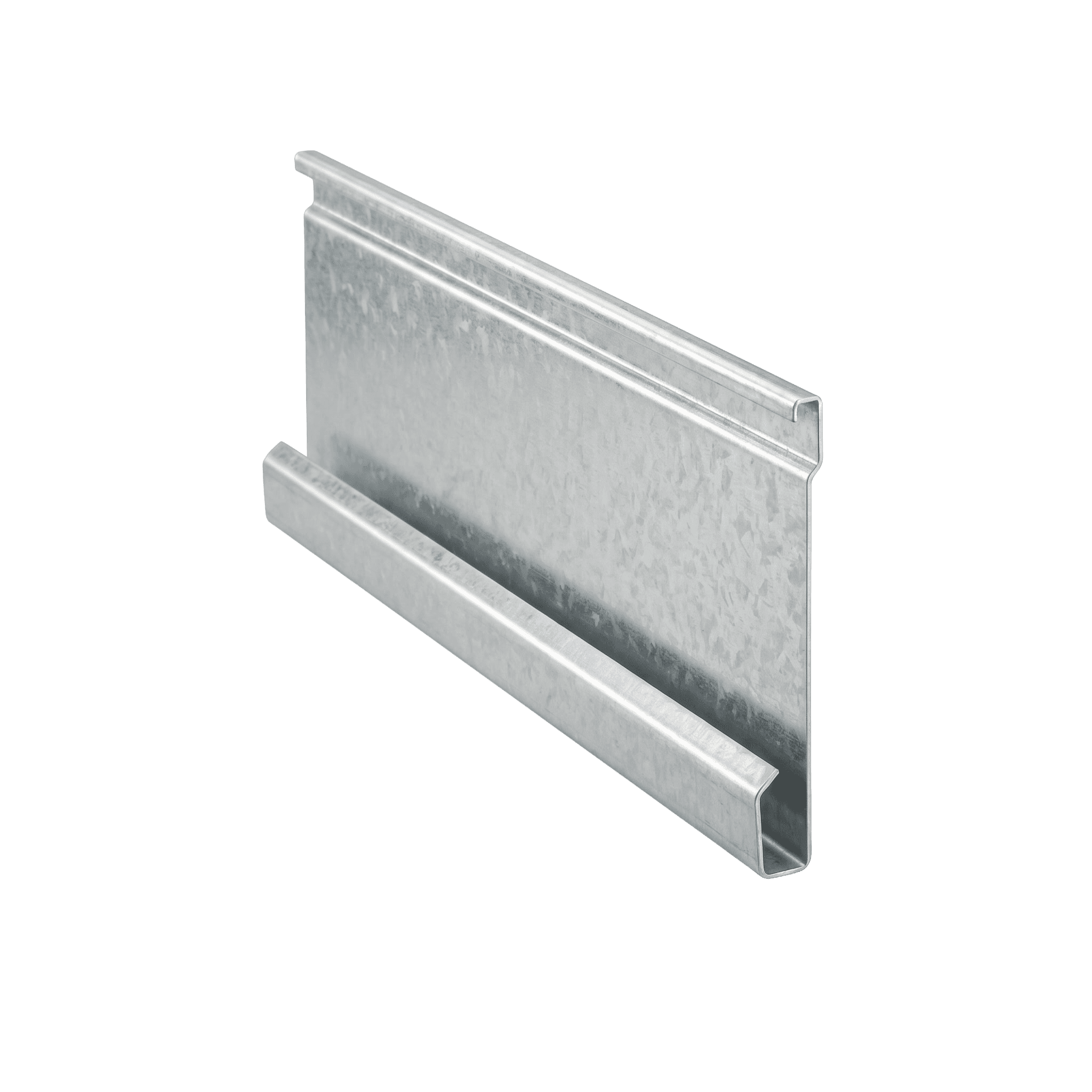

Starter strip

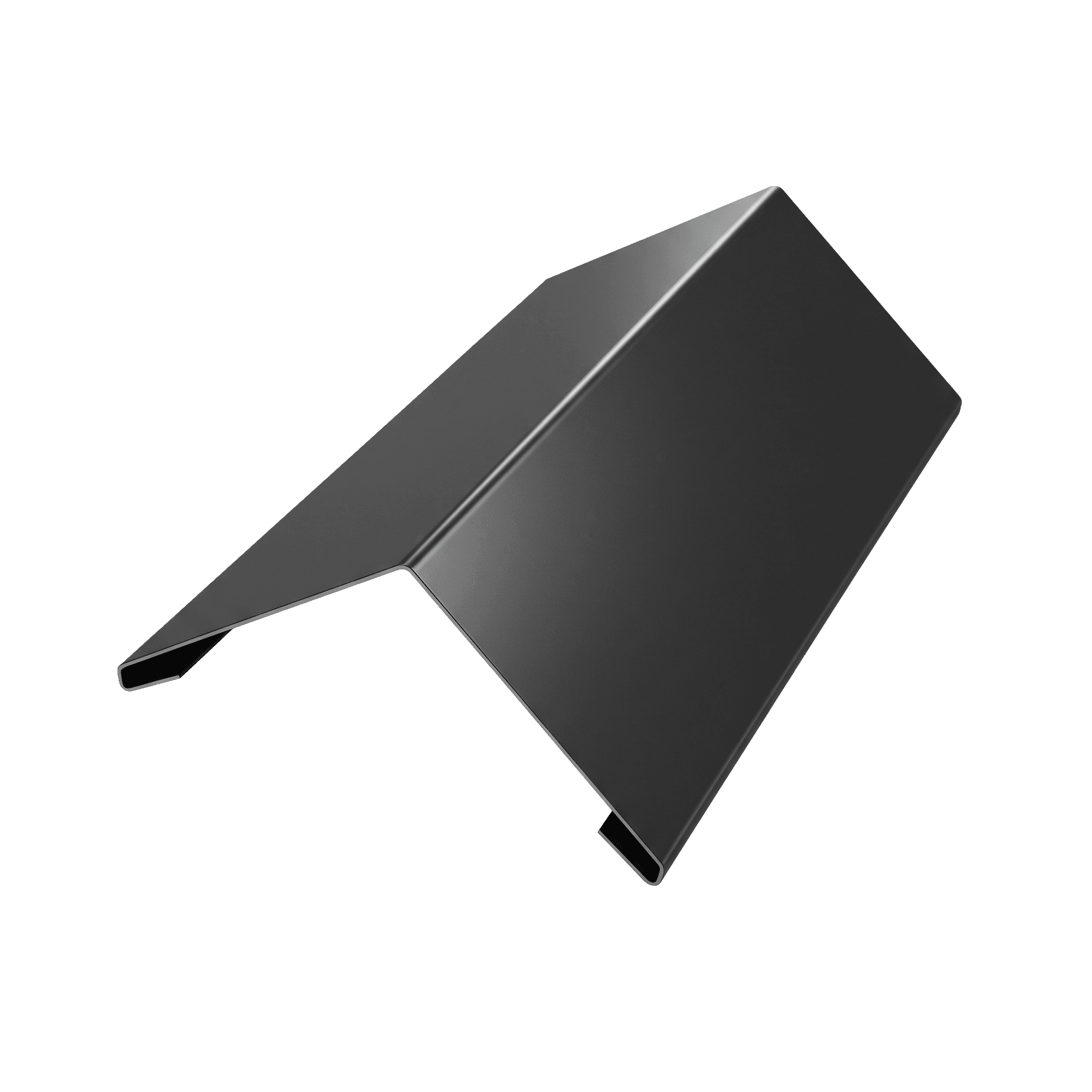

Outside corner

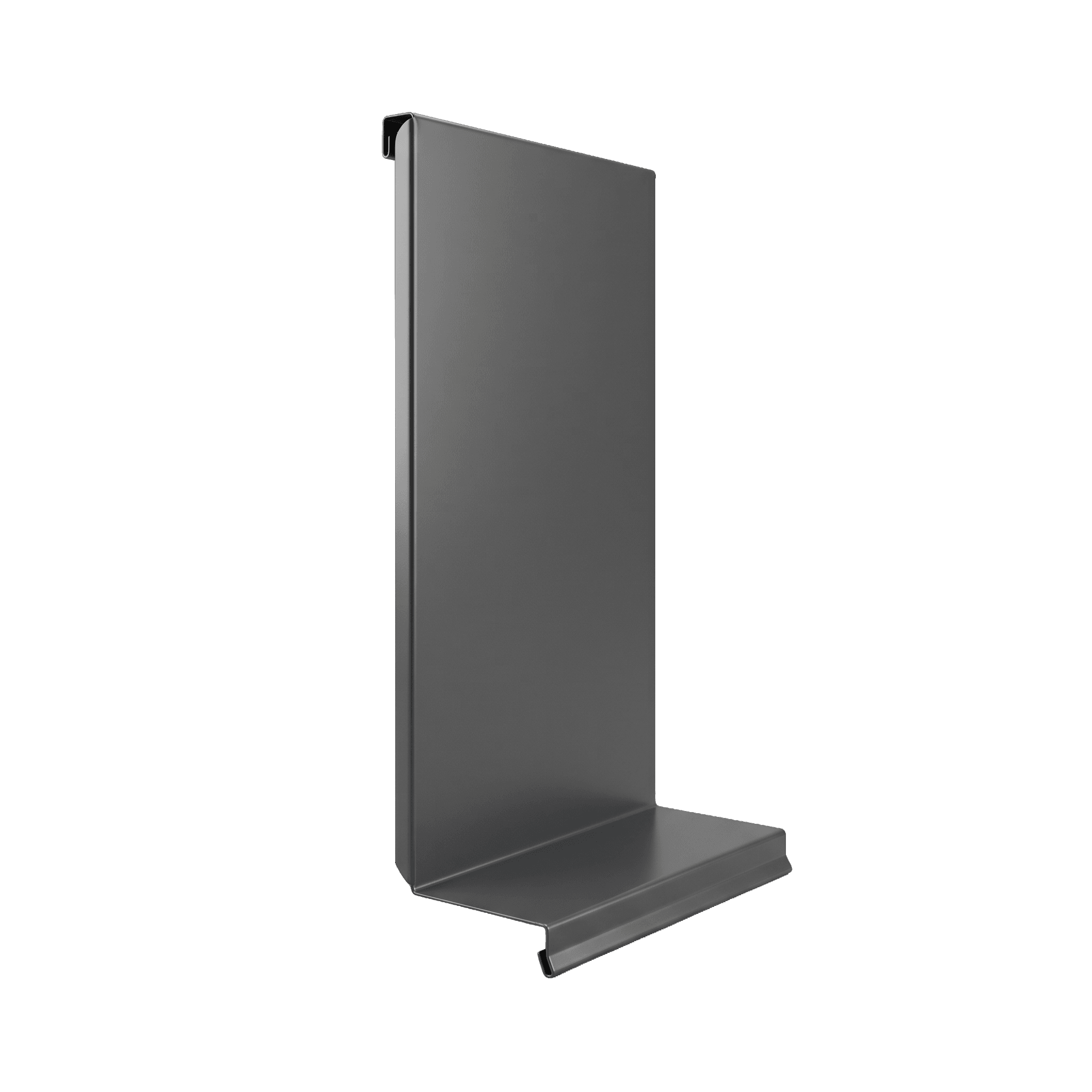

Fascia cap

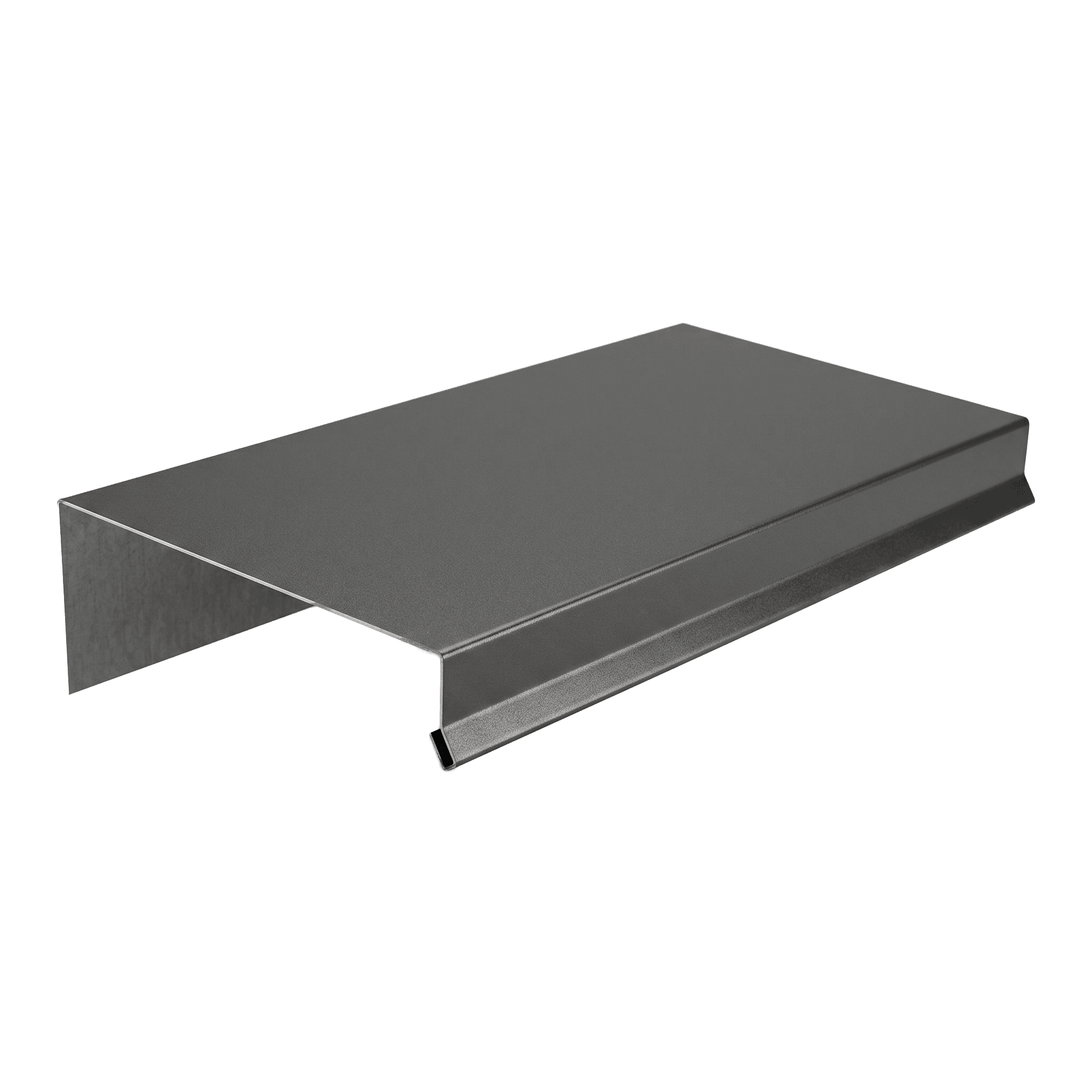

Sill flashing
When does aluminum flashing make sense?
When weight matters. Aluminum is far lighter than steel, which counts on long pieces and on anything handled overhead.
It also doesn't rust. Aluminum grows its own thin oxide skin, so a scratch or a cut edge won't bleed rust down the wall.
The trade-off is stiffness. Aluminum is softer than steel and dents more easily, so thickness matters more here.
One rule on site: keep aluminum from touching copper or pressure-treated lumber. Both corrode it. Put a membrane between them.
0.032" or 0.040" aluminum flashing?
Aluminum is sold by thickness in inches, not by gauge. The two common thicknesses on our order form are 0.032" and 0.040".
The 0.040" sheet is stiffer. It keeps a flatter face on wide flashing and long runs. The 0.032" is lighter and easier to work, and it suits smaller trim.
Other thicknesses: write the number on the drawing and we'll confirm it with the quote.
Colours for prepainted aluminum flashing
Prepainted aluminum comes in two coatings. The PVDF range has seven colours: Polar White, Champagne, Weathered Zinc, Dark Bronze, Slate Grey, Charcoal and Black. The polyester range has five: Ultra White, Van Trailer White, Commercial White, Commercial Brown and Commercial Black.
That's a short list next to steel. If your cladding colour isn't on it, prepainted steel flashing is the easier match; the Classic SMP range alone has 40 colours.
Perforated aluminum is on the price list too, in black or unpainted, for details that need airflow.
Aluminum flashing questions
Do you supply aluminum flashing in Surrey and Vancouver?+
Yes. We form custom aluminum flashing in Delta and deliver to job sites in Surrey, Vancouver, the rest of the Lower Mainland and further into BC. Or you pick it up at 5-730 Eaton Way.
Is aluminum or steel better for flashing?+
Steel for most exterior work: Galvalume, galvanized or prepainted, with far more colours. Aluminum when weight matters, or when a rust streak from a cut edge would be a problem.
What thickness of aluminum flashing should I order?+
0.040" for wide faces and long pieces, 0.032" for smaller trim. Those two are the common ones on our order form. For anything else, note it on the drawing and we'll confirm.
What colours does prepainted aluminum come in?+
Seven PVDF colours and five polyester colours, from whites through Dark Bronze to Black. The full PVDF list is on our Signature colours page. Ask for a physical chip before you commit a whole building to one.
Can aluminum flashing touch treated wood?+
Not directly. The copper in pressure-treated lumber corrodes aluminum over time. Put a membrane or another separator between them.
How to order aluminum flashing
Send a sketch, a CAD file or a photo of the part you're replacing, plus the thickness, the colour and the lengths. We price it, usually the same day. Standard runs ship in three to five business days.
Ready for a custom aluminum flashing quote?
Send the drawing and you'll usually have a price the same day. Standard runs leave our Delta shop in three to five business days, delivered across Vancouver, the Lower Mainland and further into BC.
